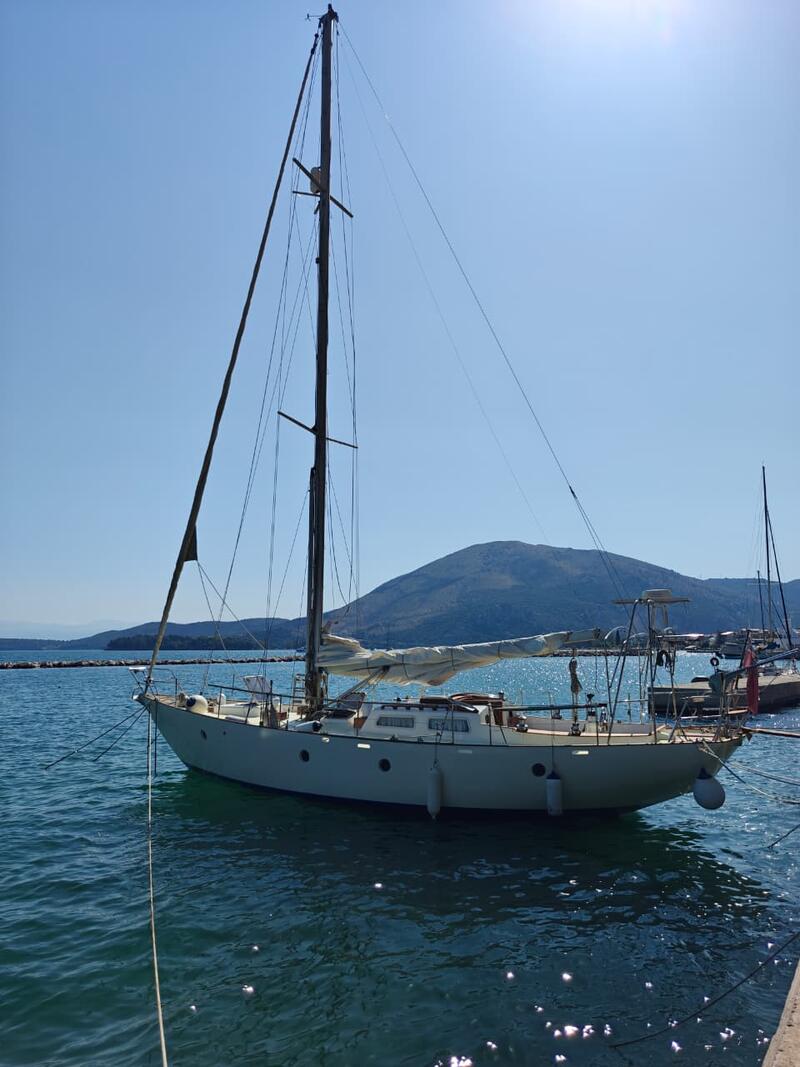

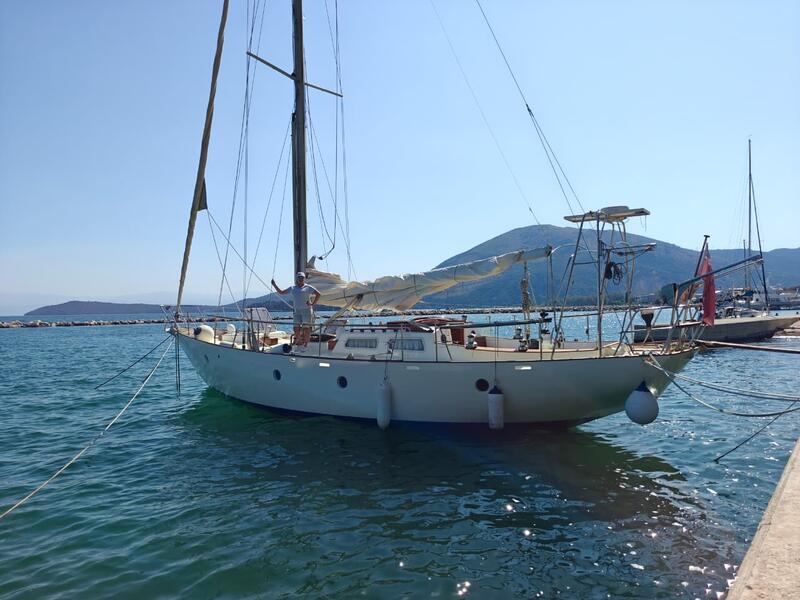

Description

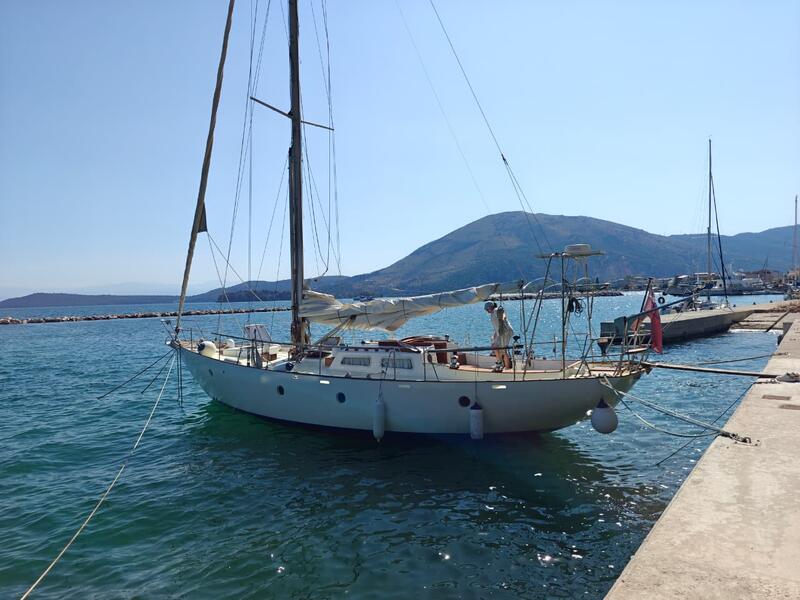

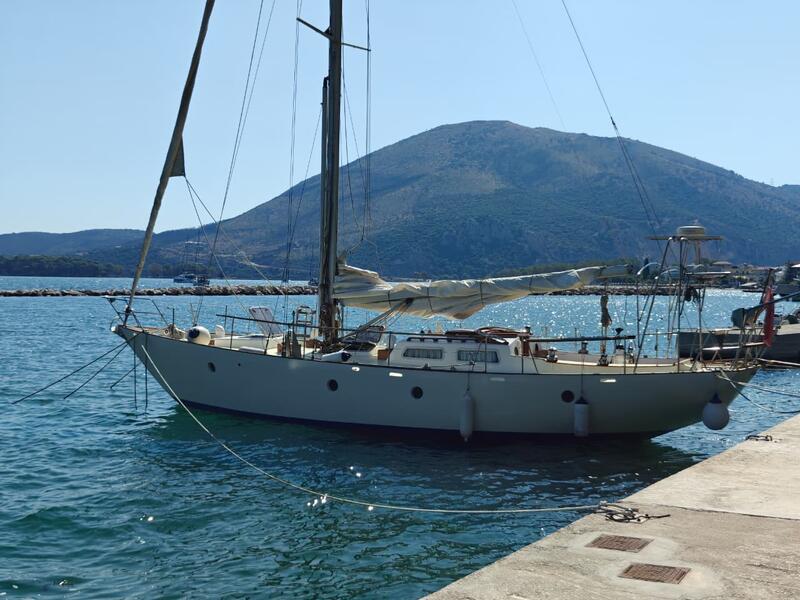

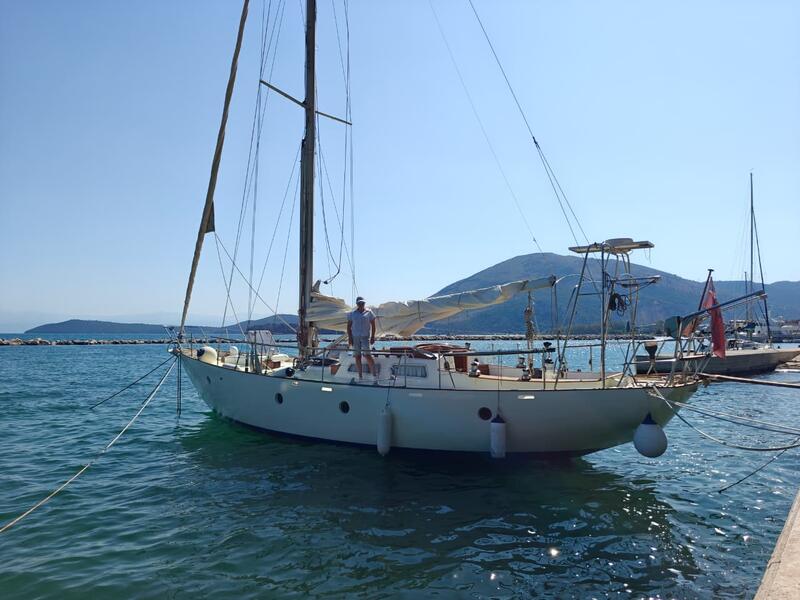

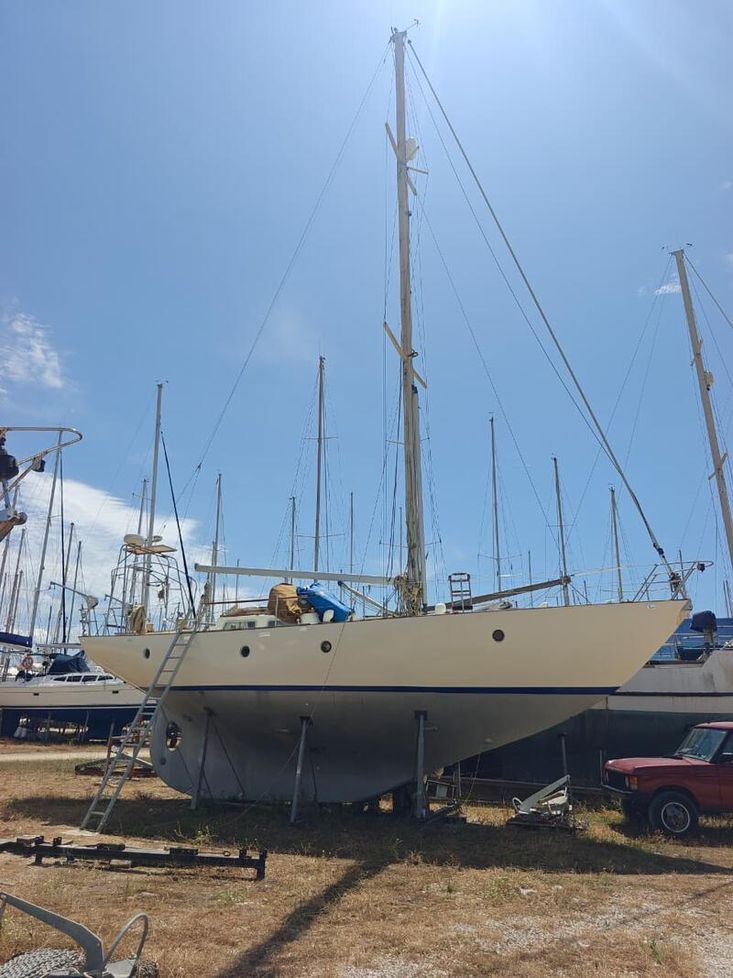

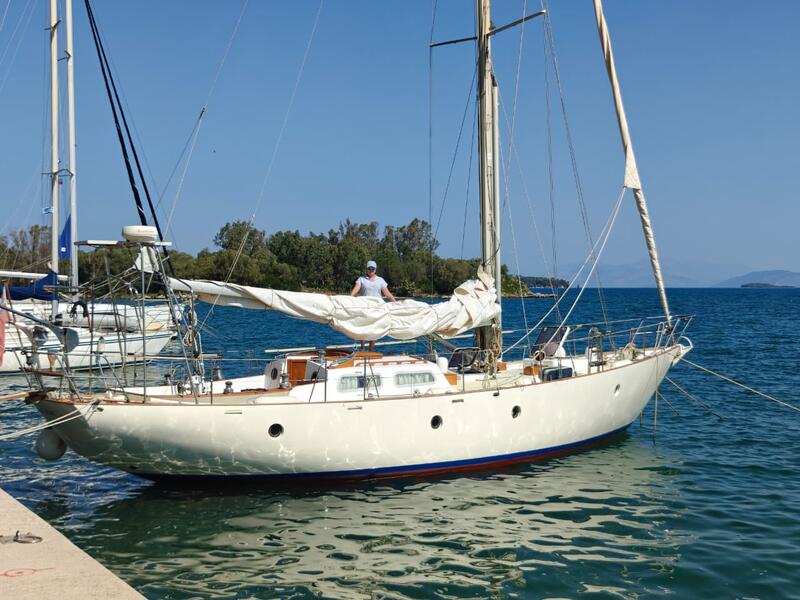

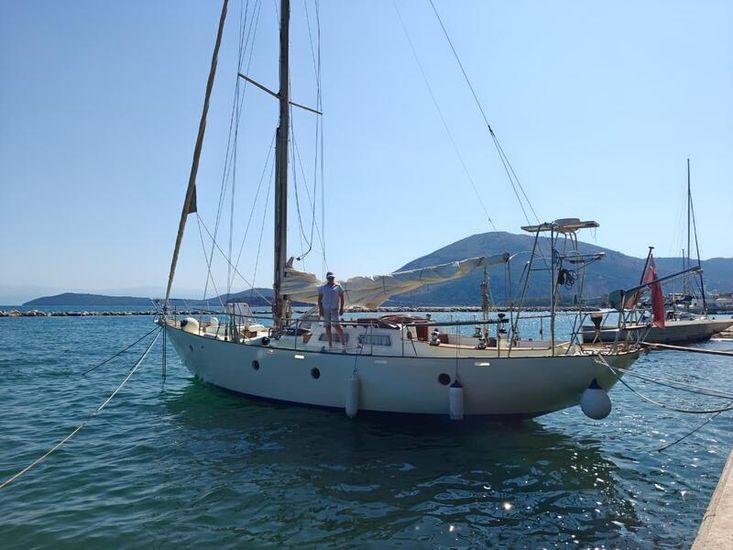

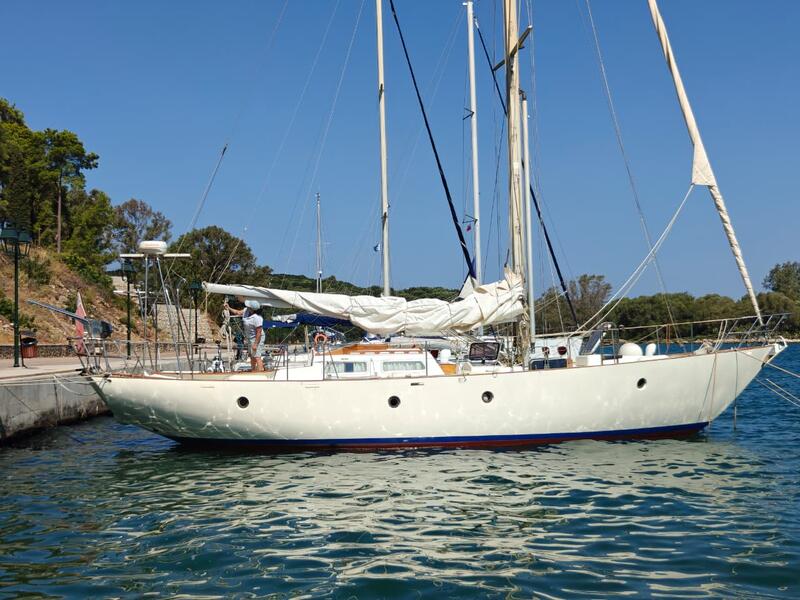

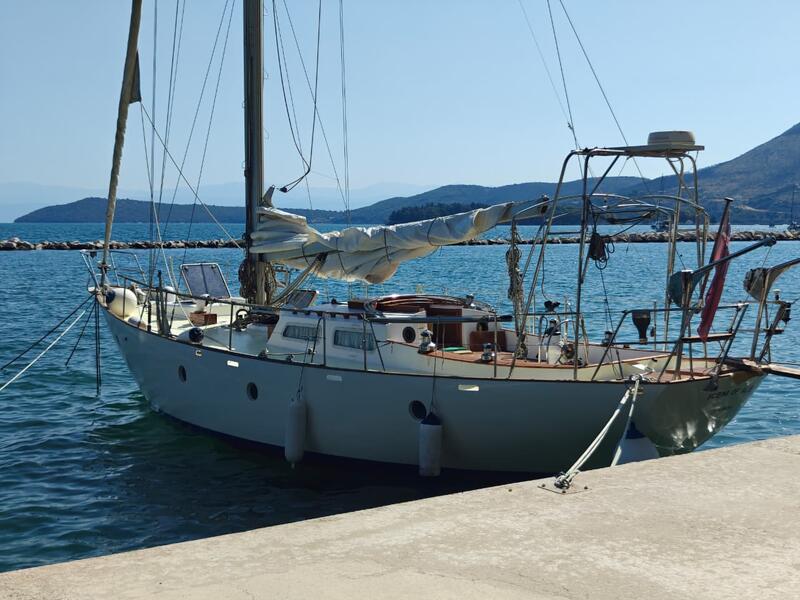

Alan Pape 42 is an exceptional example of a traditional blue water cruising yacht built in 1998 by Morvoren Seacraft to a design by renowned yacht designer. She is a strongly constructed round-bilge steel vesseldesigned for safe and comfortable ocean cruising. Her 6 mm steel hull below the waterline, long keel with 4.5 tonnes of lead ballast, and fully insulated construction provide outstanding strength, stability, and protection for long-distance voyages.

Specifications

Accommodation

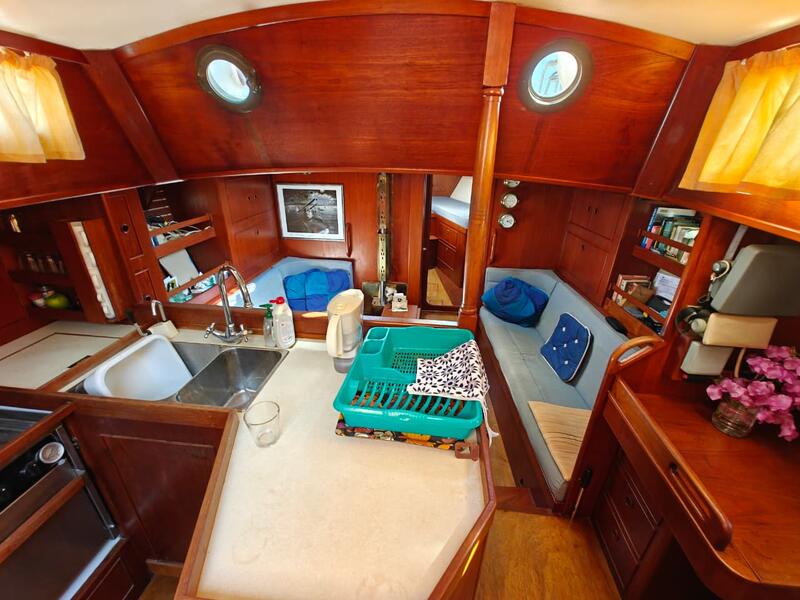

The traditional teak interior offers a warm and comfortable living environment, with accommodation for five guests in three cabins plus the saloon. The layout includes an L-shaped saloon seating area with convertible berth, fully equipped galley with three-burner stove, oven, fridge, and double sink, a forward V-berth cabin, two aft cabins, and a separate heads compartment with shower

Accommodation: 5 berths in 3 cabins plus saloon

INTERIOR & ACCOMMODATION
Traditional teak interior throughout

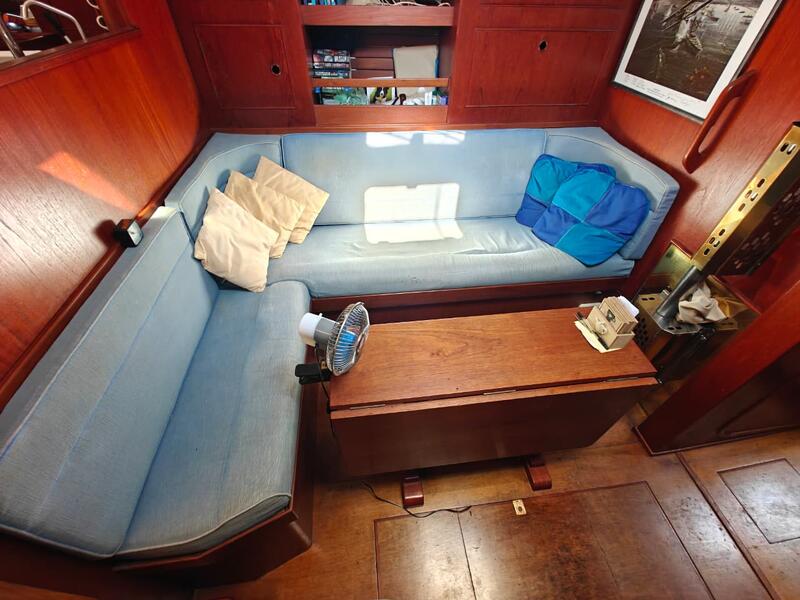

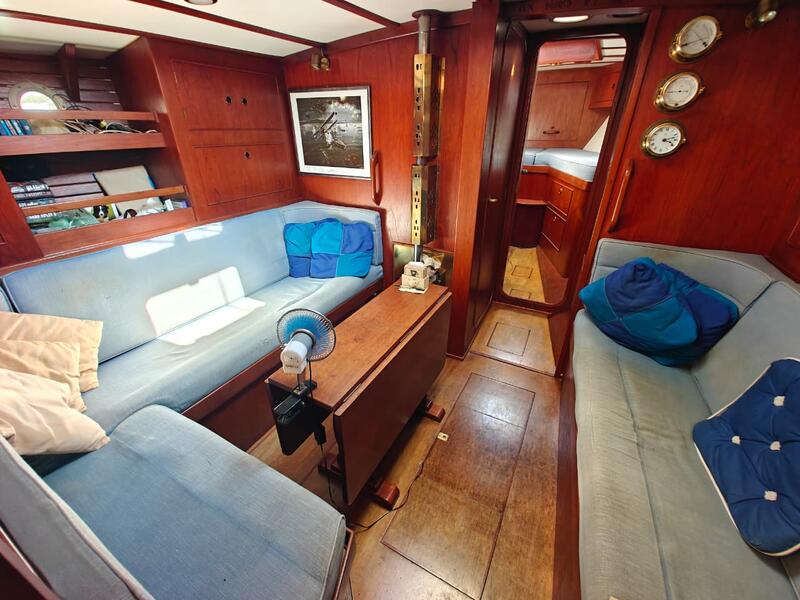

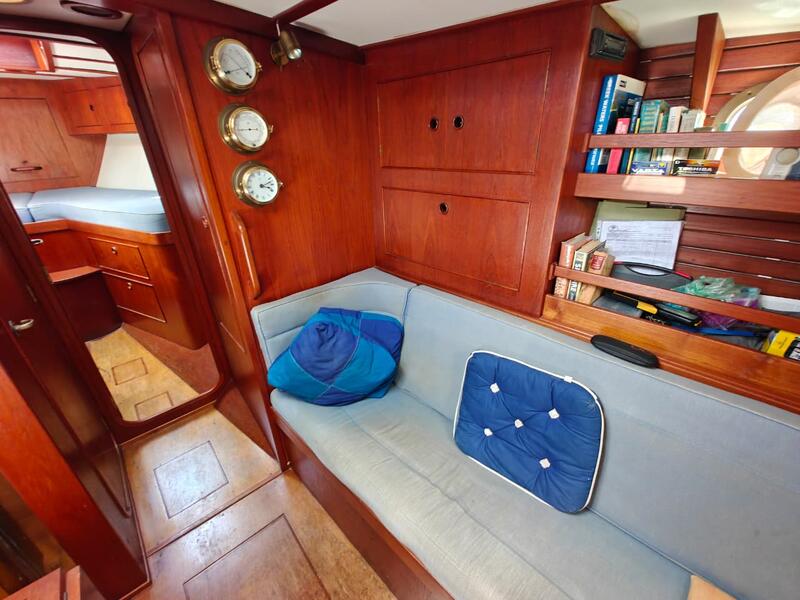

Saloon:
L-shaped settee
Opposite settee
Convertible berth
Solid teak saloon table
Storage lockers

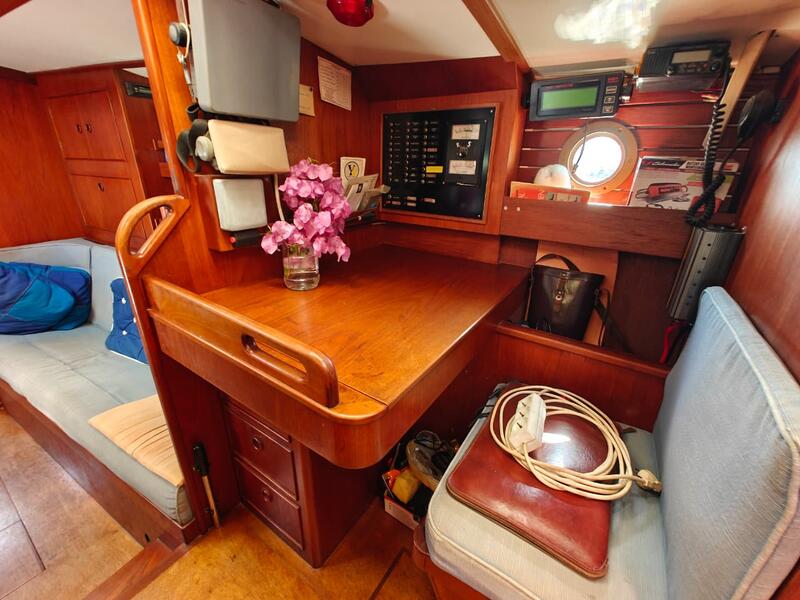

Navigation station

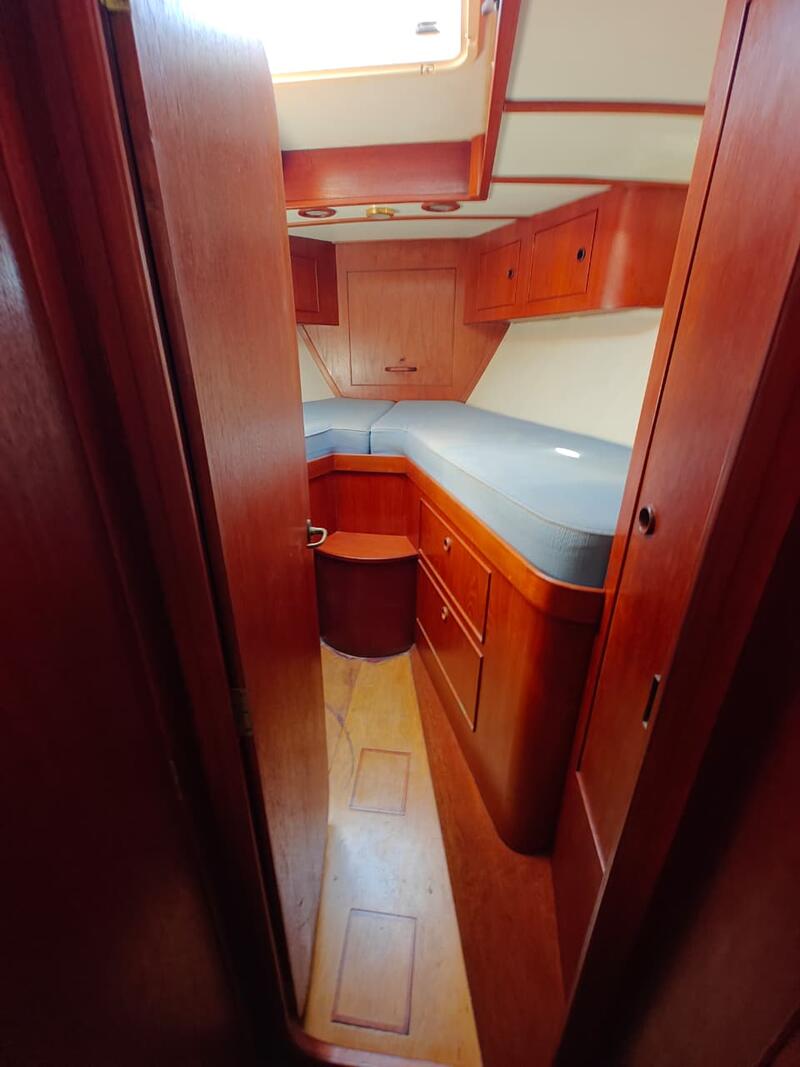

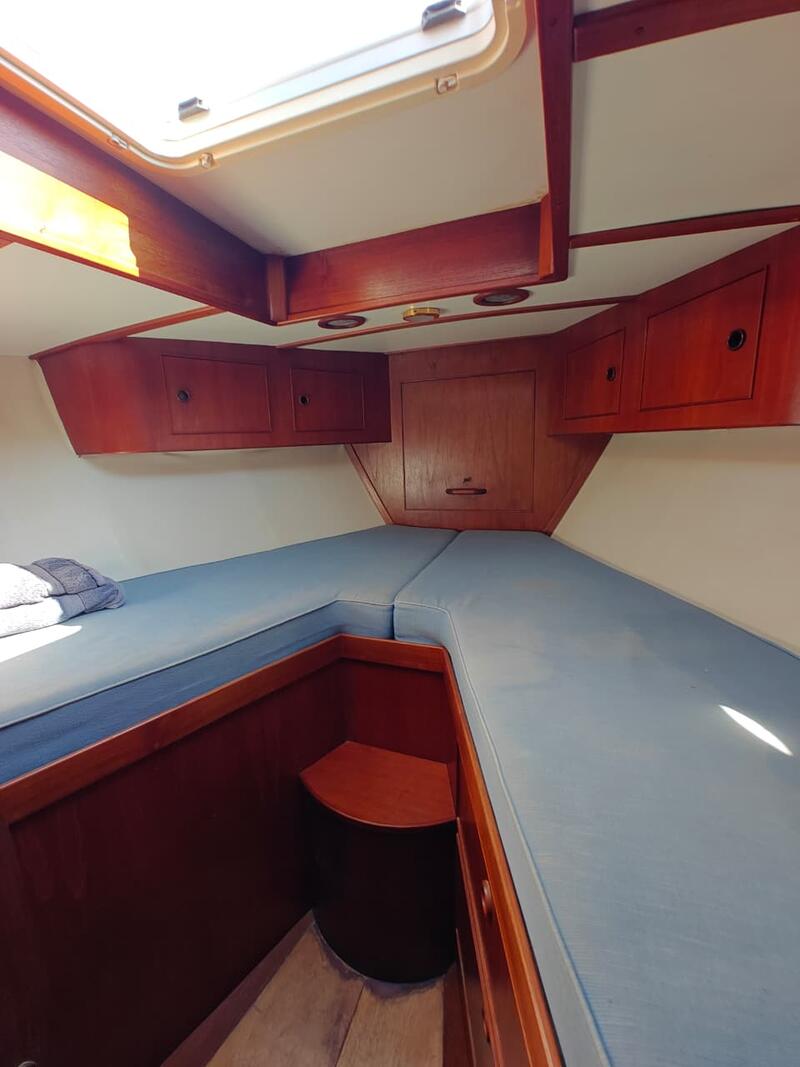

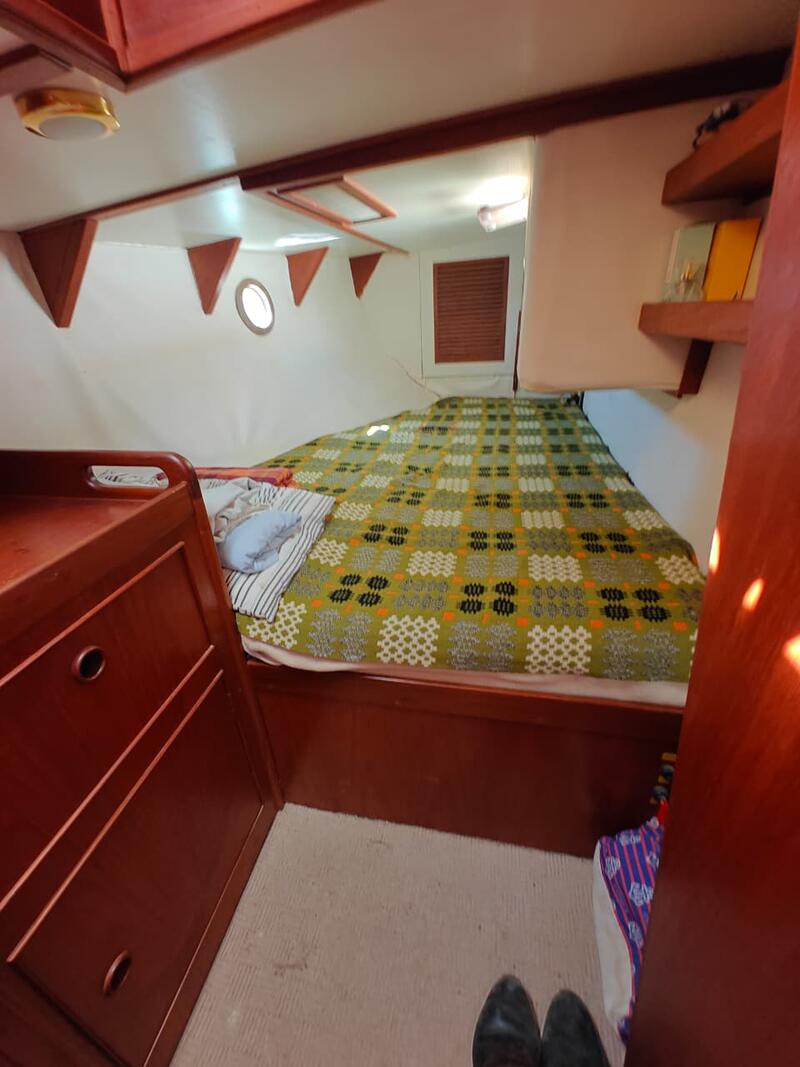

Forward cabin with V-berth

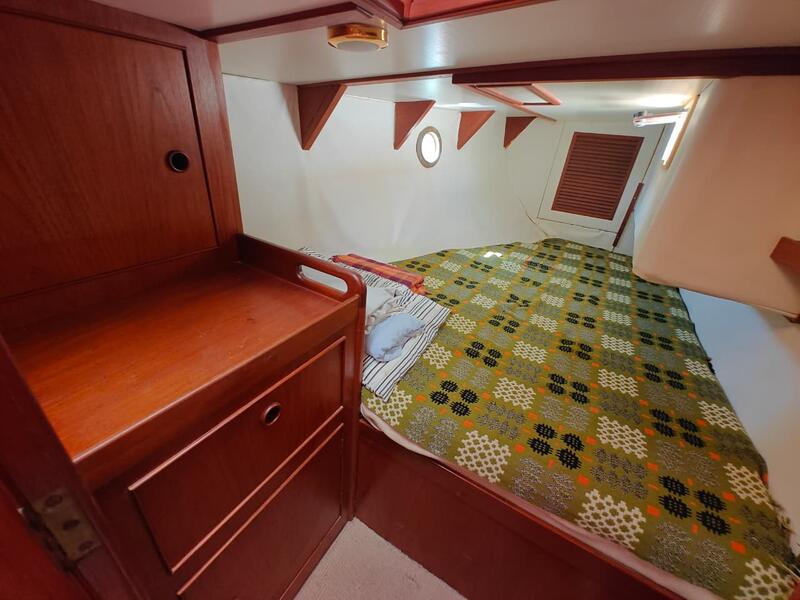

Single aft cabin to port
Double aft cabin to starboard

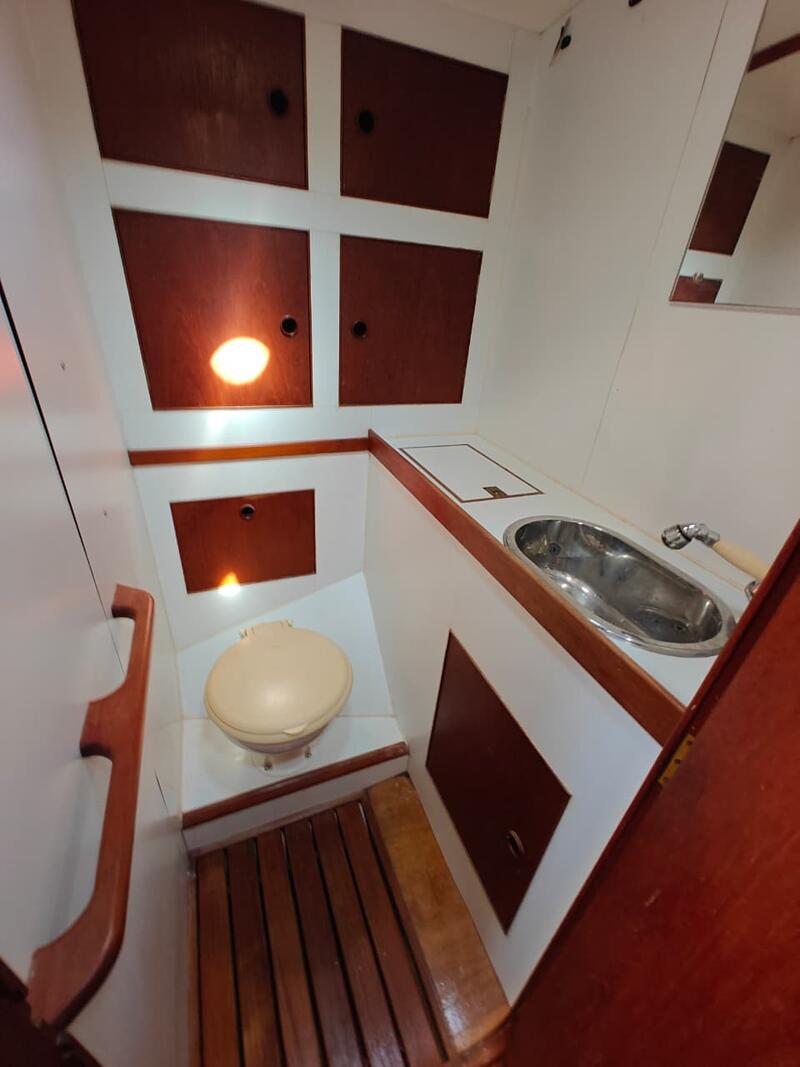

Heads compartment with:
Marine toilet
Shower
Wash basin

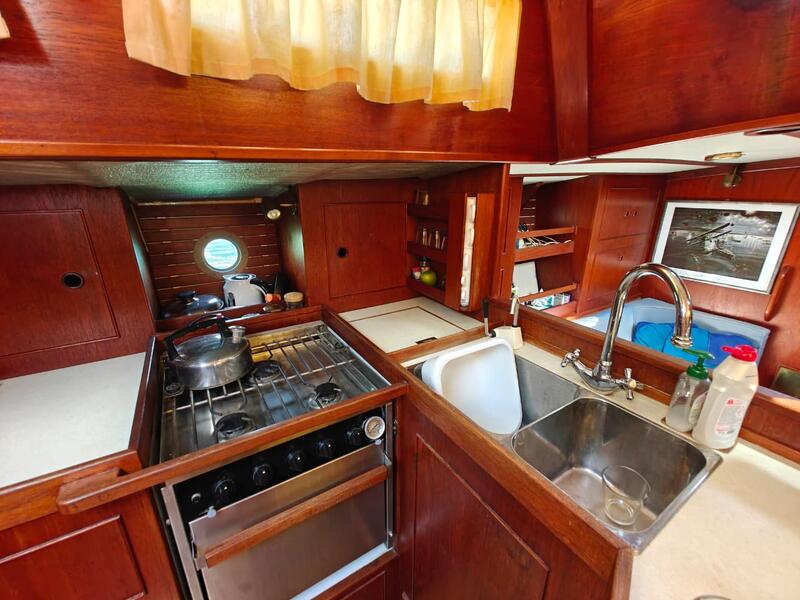

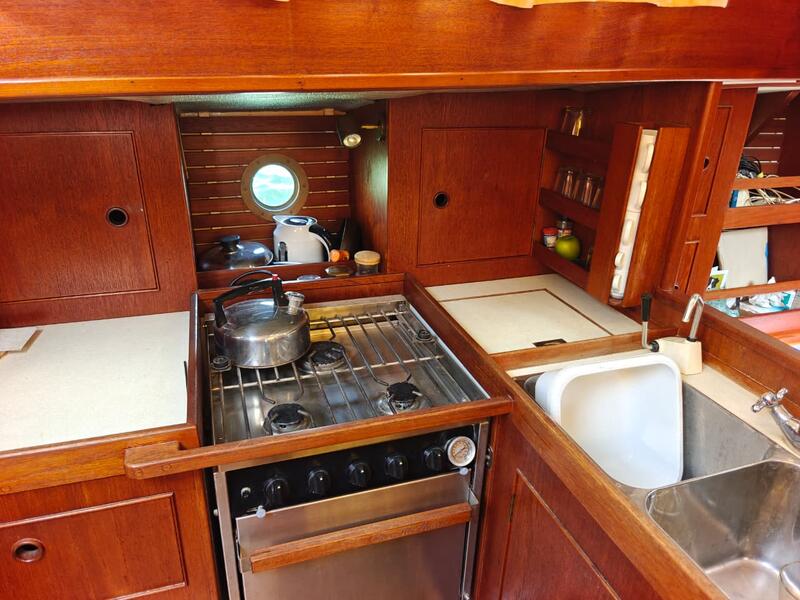

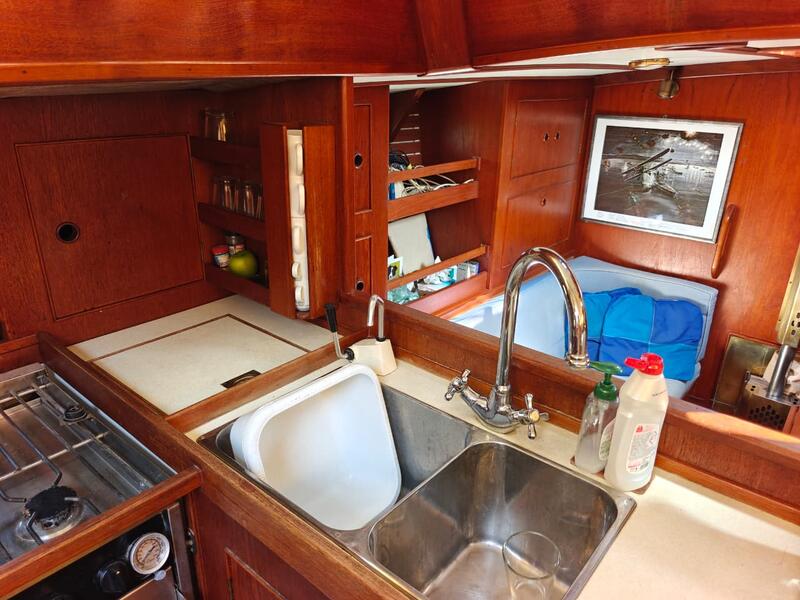

GALLEY
Force 10 stainless steel gas cooker
3 burners
Oven
Grill
Double stainless steel sink with mixer tap
Hand pumps for fresh and seawater
Frigomatic W35F water-cooled fridge
2 x 6 kg LPG bottles

Construction

Alan Pape 42 is an exceptional example of a traditional blue water cruising yacht built in 1998 by Morvoren Seacraft to a design by renowned yacht designer. She is a strongly constructed round-bilge steel vesseldesigned for safe and comfortable ocean cruising.

Her 6 mm steel hull below the waterline, long keel with 4.5 tonnes of lead ballast, and fully insulated construction provide outstanding strength, stability, and protection for long-distance voyages.

Combining classic lines with practical offshore capability, she is an ideal choice for sailors looking for a reliable liveaboard cruiser

Designed for extended voyages and self-sufficient cruising, she benefits from excellent storage, diesel heating, a well-equipped deck, and a complete tender package.

This is a capable and proven ocean-going cruiser, offering comfort, security, and timeless character for serious sailors seeking adventure around the world.
Flag: UK

GENERAL
Builder: Morvoren Seacraft
Designer: Alan Pape
Year: 1998
Type: Bluewater Cruiser / Offshore Sailing Yacht

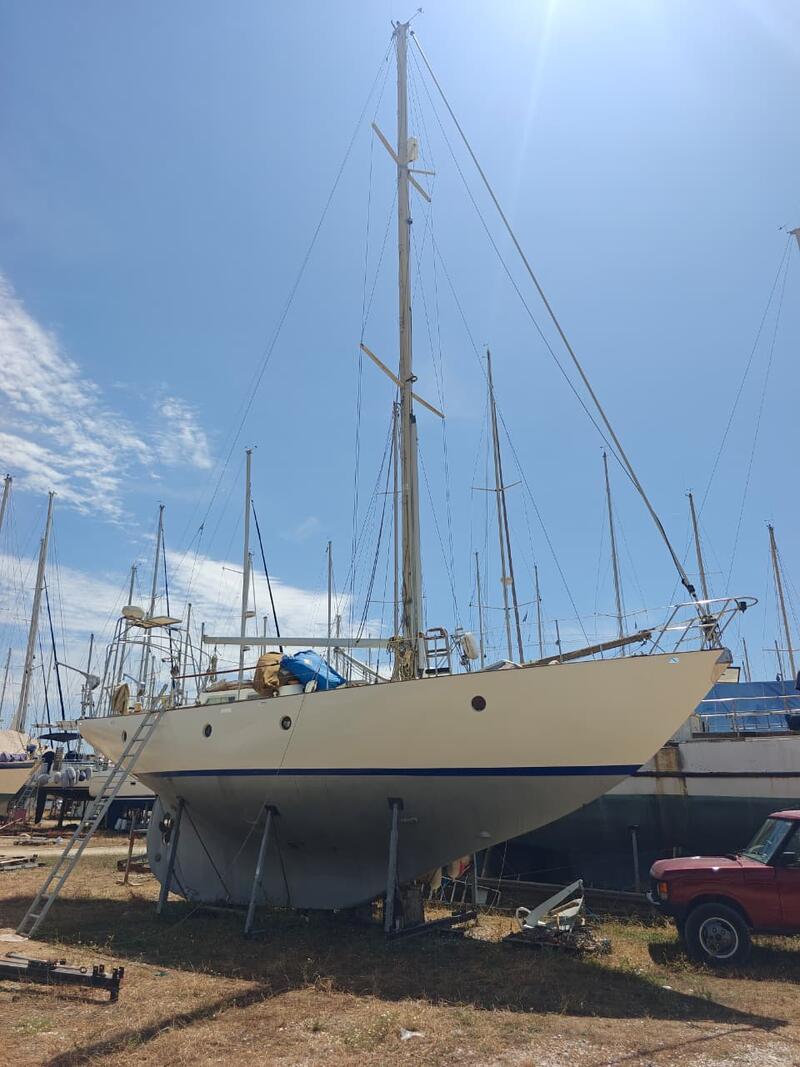

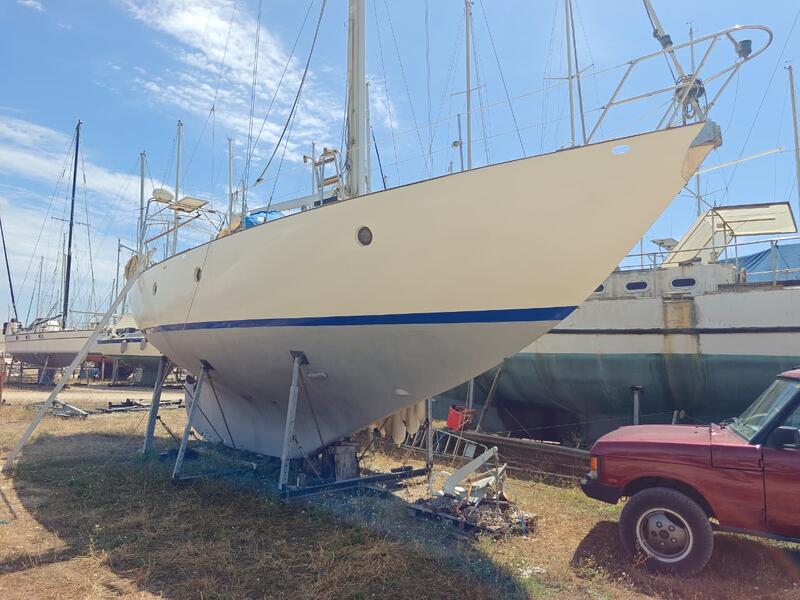

Construction: Steel round-bilge hull, deck and superstructure

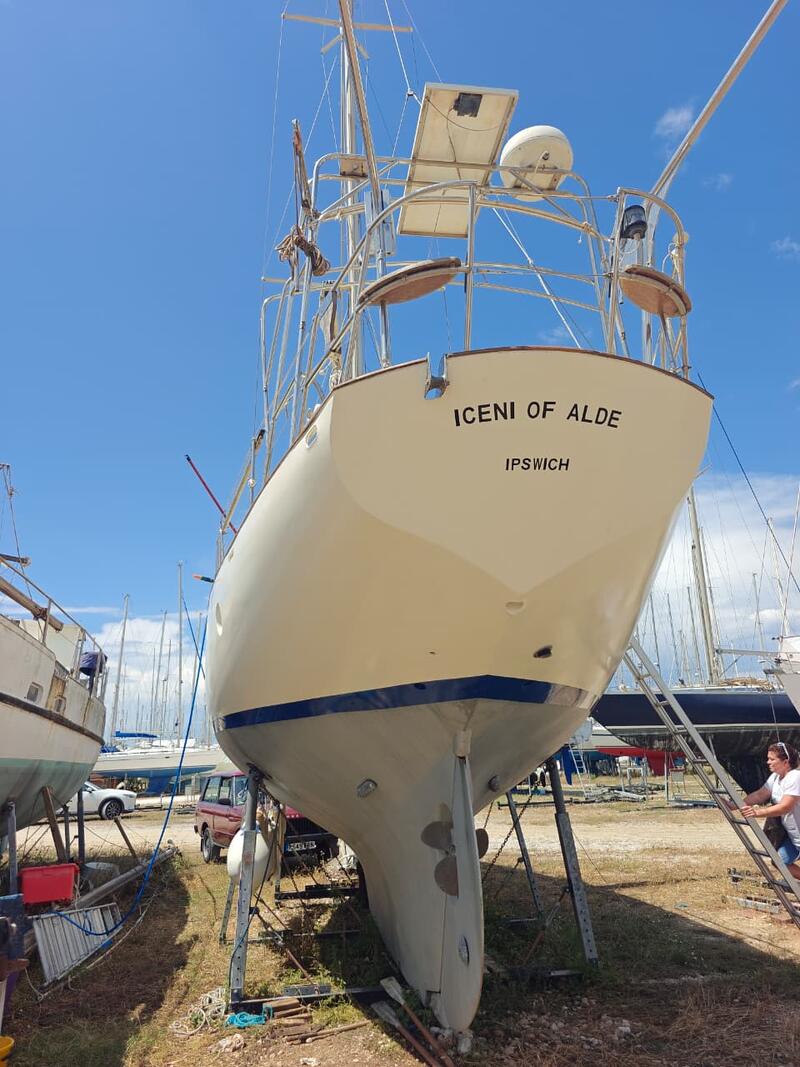

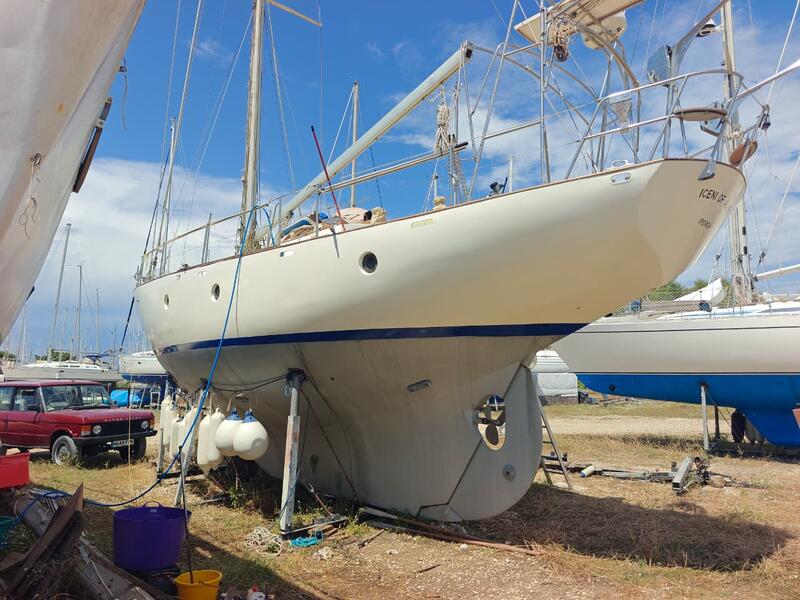

Hull: Long keel with 4.5 tonnes lead ballast keel
LOA: 12.90m
Beam: 3.81m
LWL: 9.75m
Draft: 1.90m
Displacement: Approx. 15 tonnes

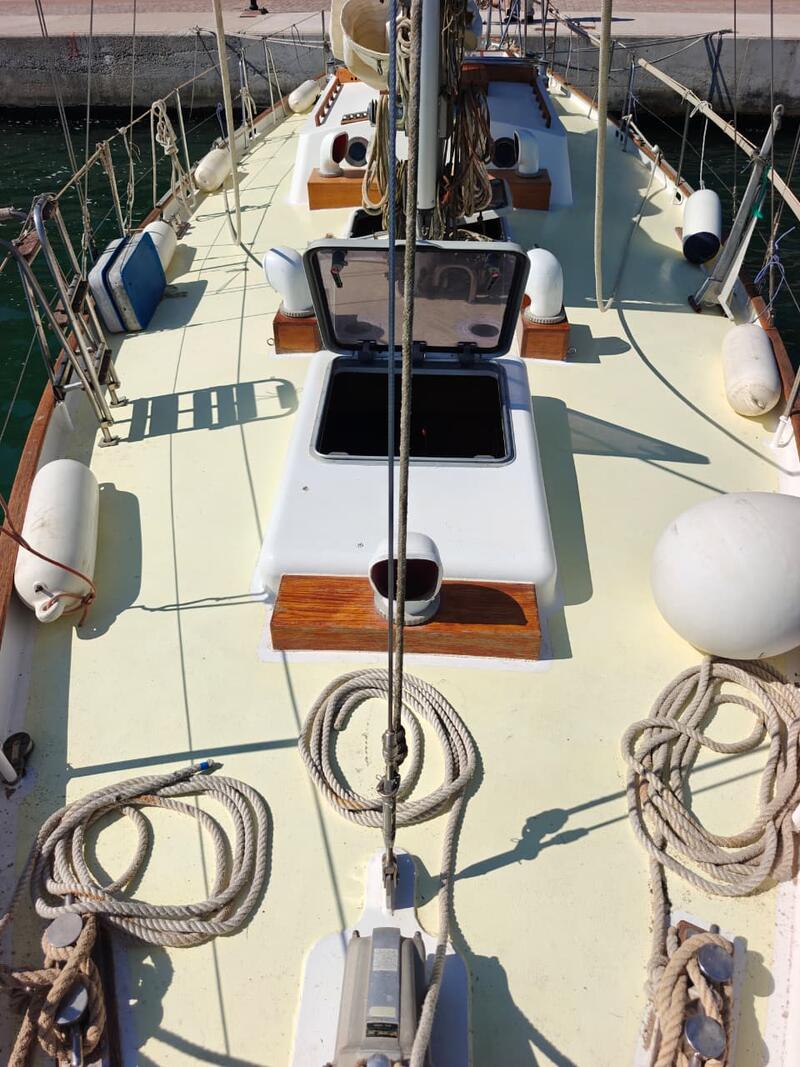

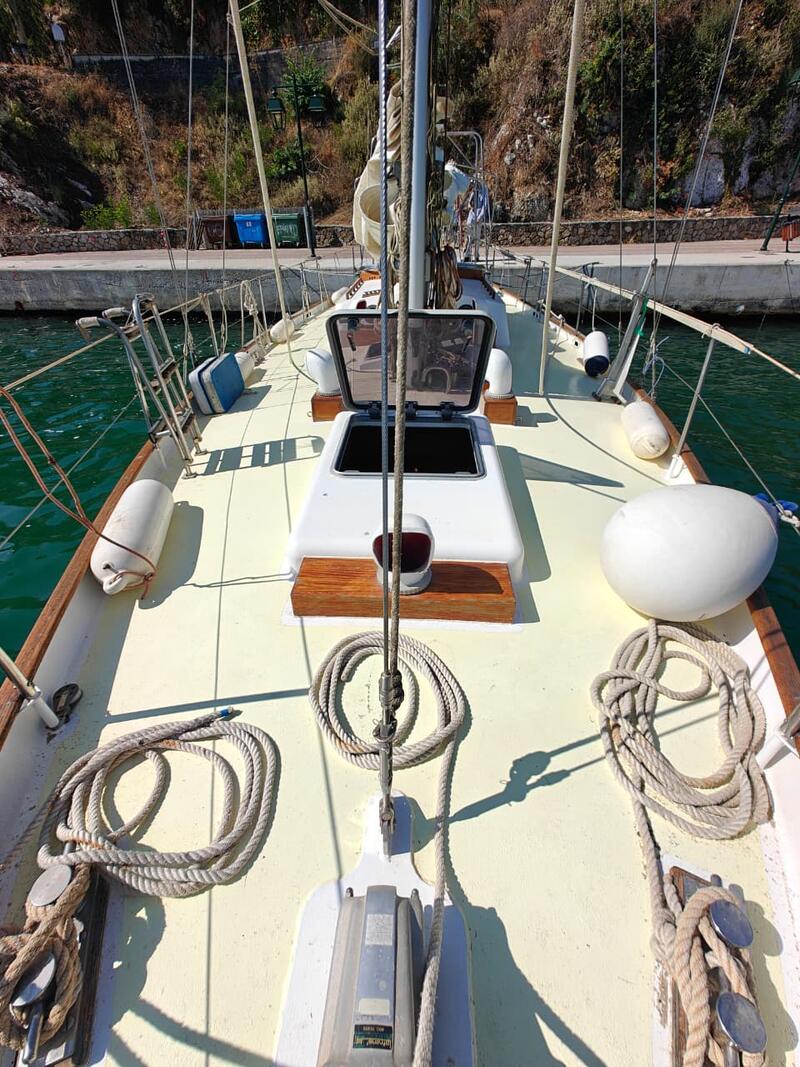

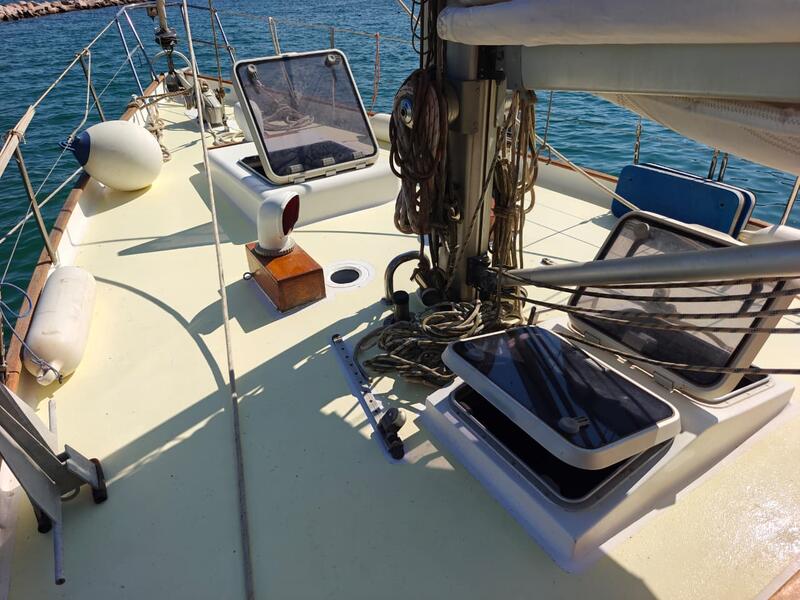

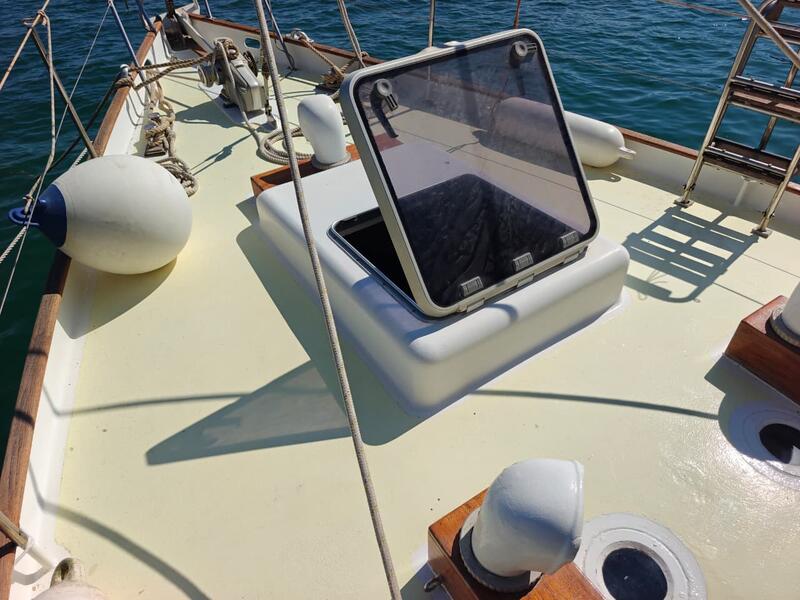

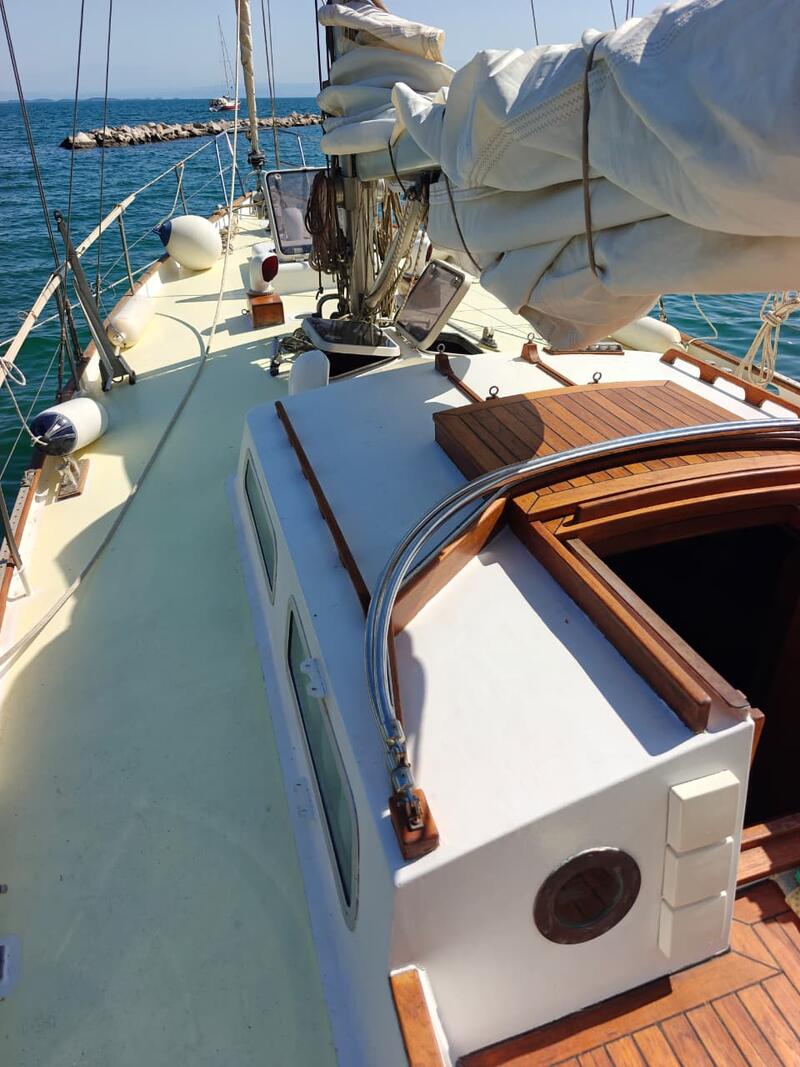

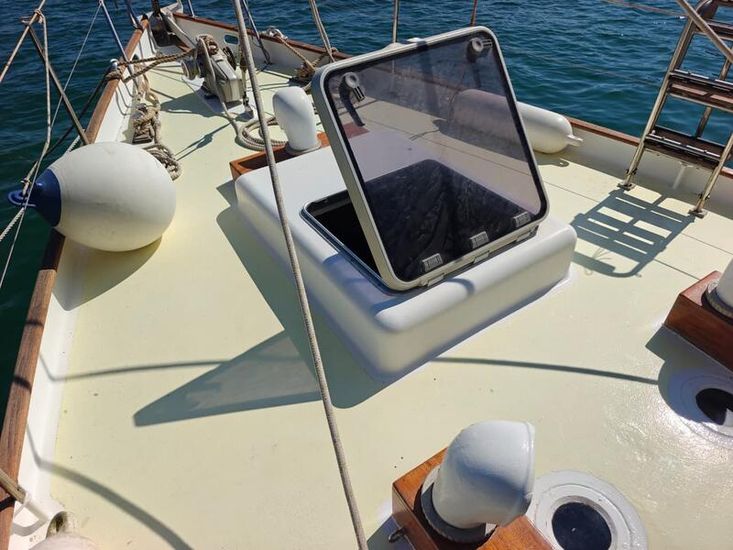

CONSTRUCTION & DECK

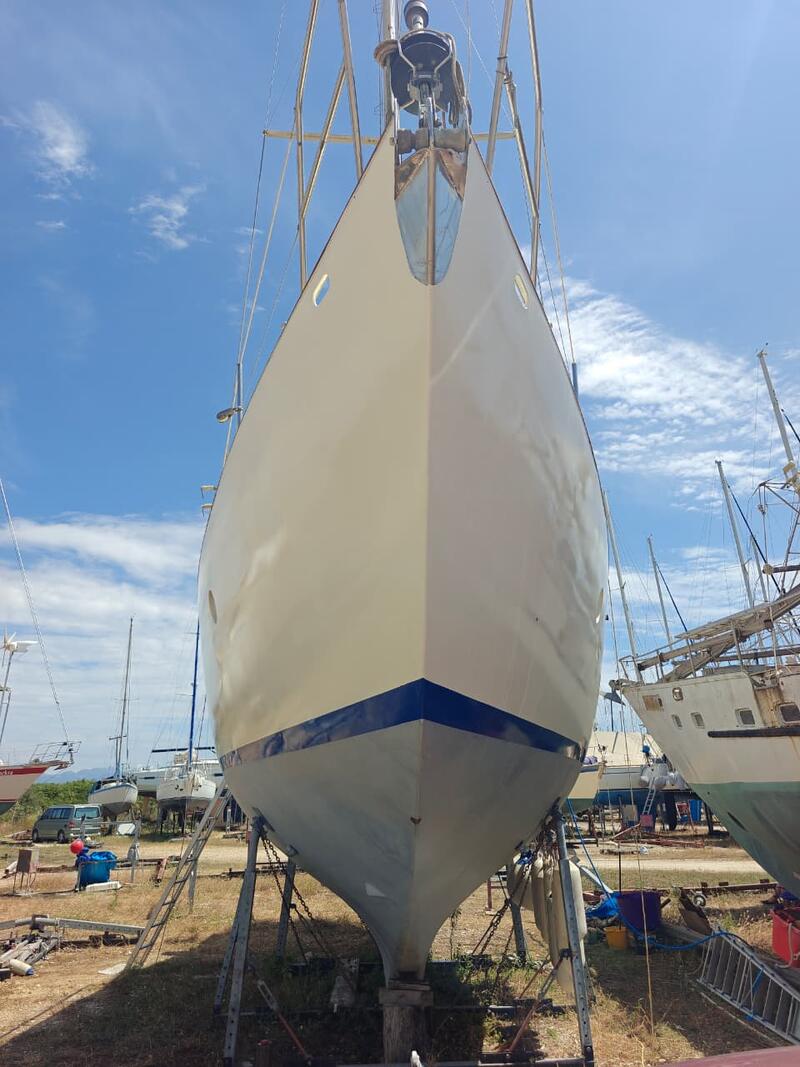

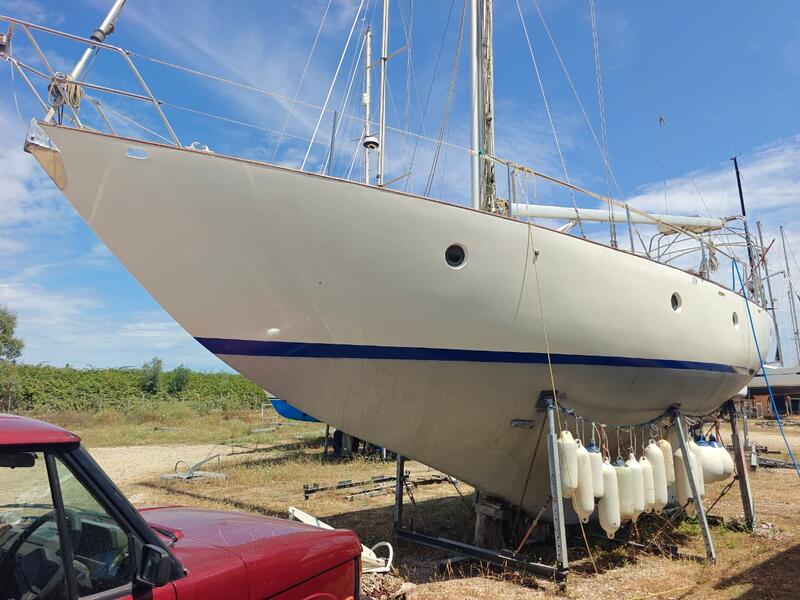

Steel hull construction:
6 mm steel below waterline
5 mm topsides
4 mm deck and superstructure
Fully insulated above waterline with 40 mm closed-cell polyurethane foam
Stainless steel deck hardware and stanchions

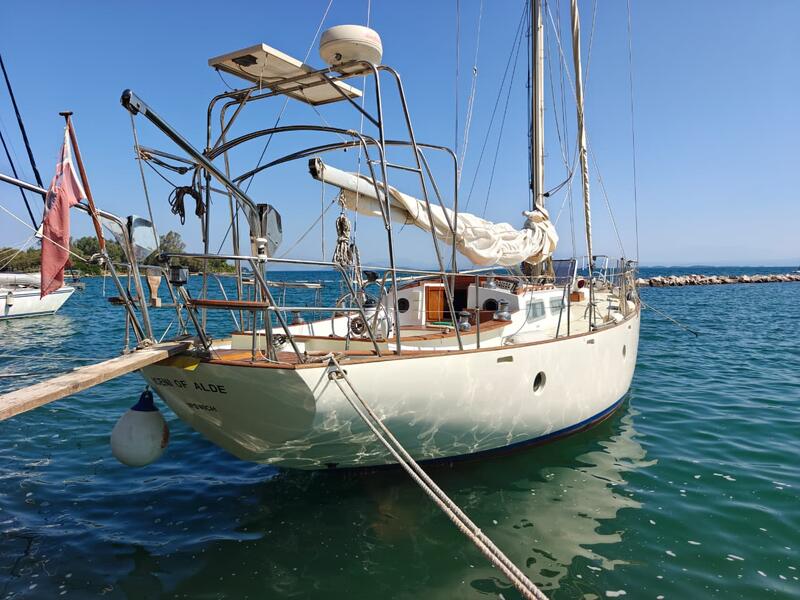

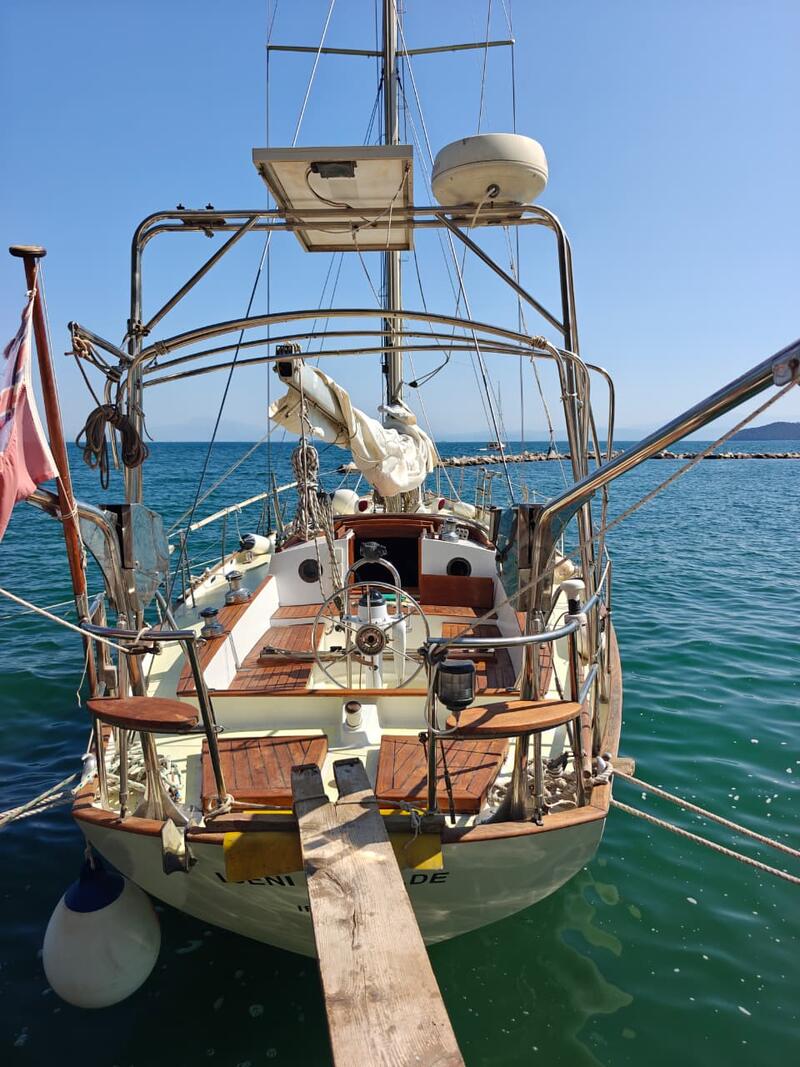

Stainless steel A-frame

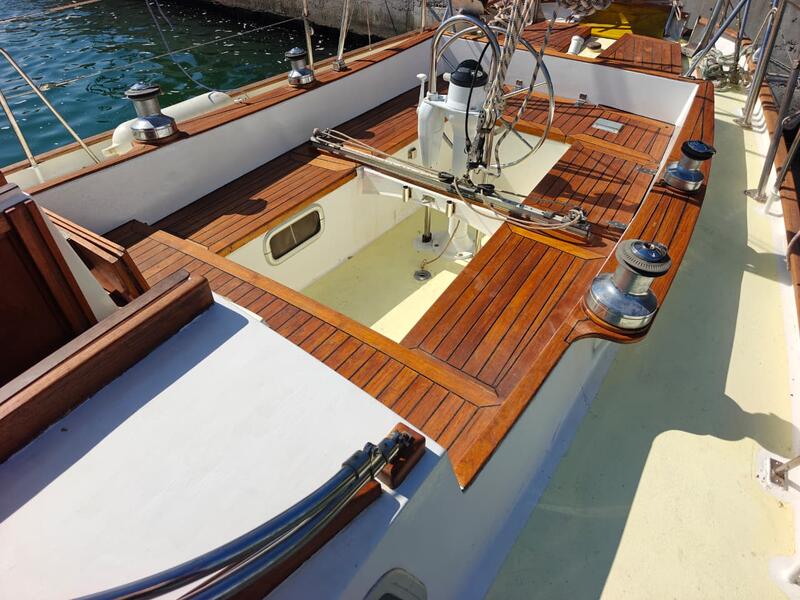

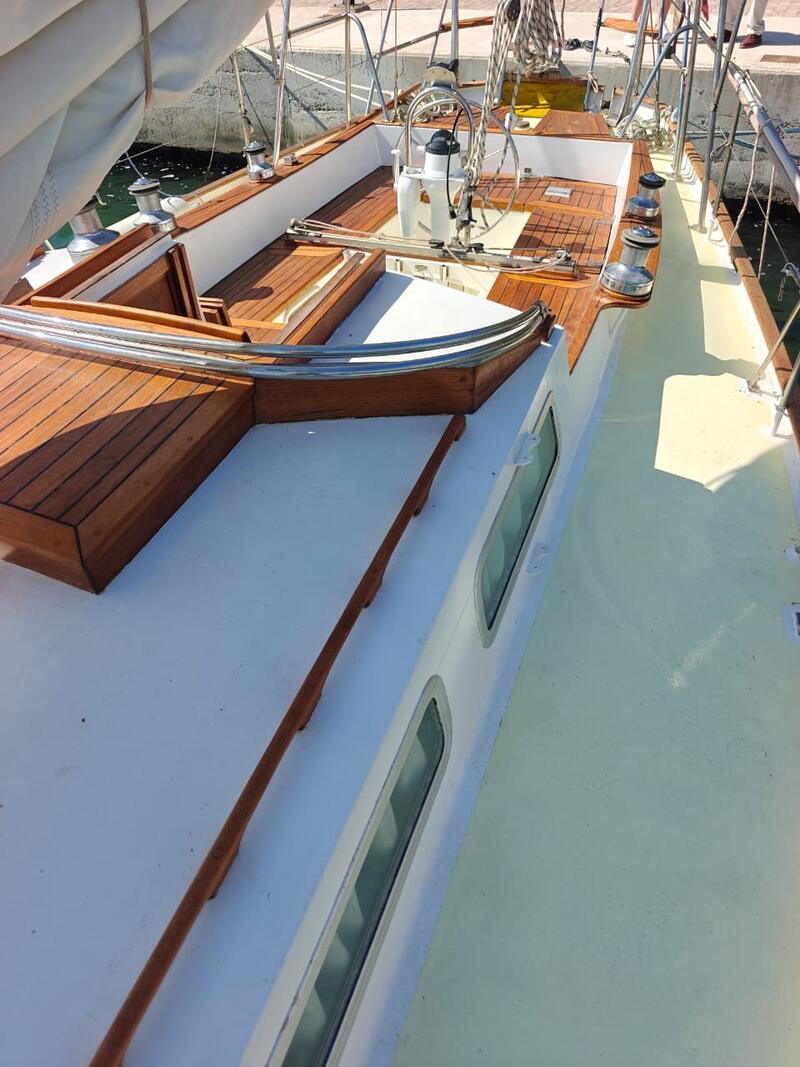

Teak cockpit seats, coamings, hatch and garage
Double-glazed toughened glass coachroof windows

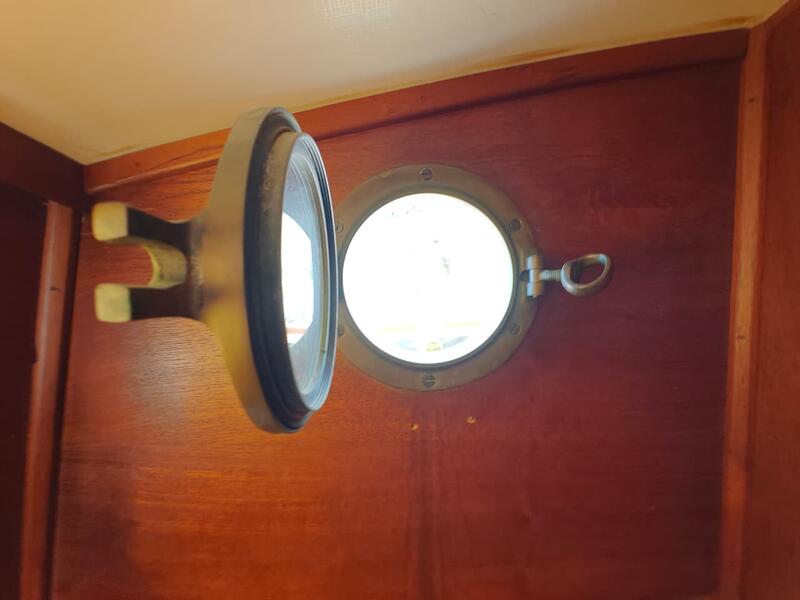

Bronze portlights:
8 in hull
4 in coachroof
Self-draining gas locker

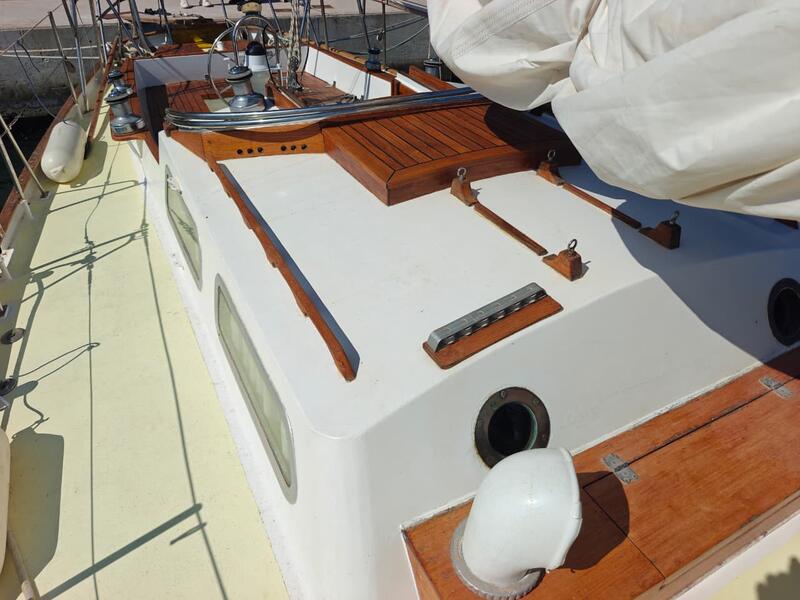

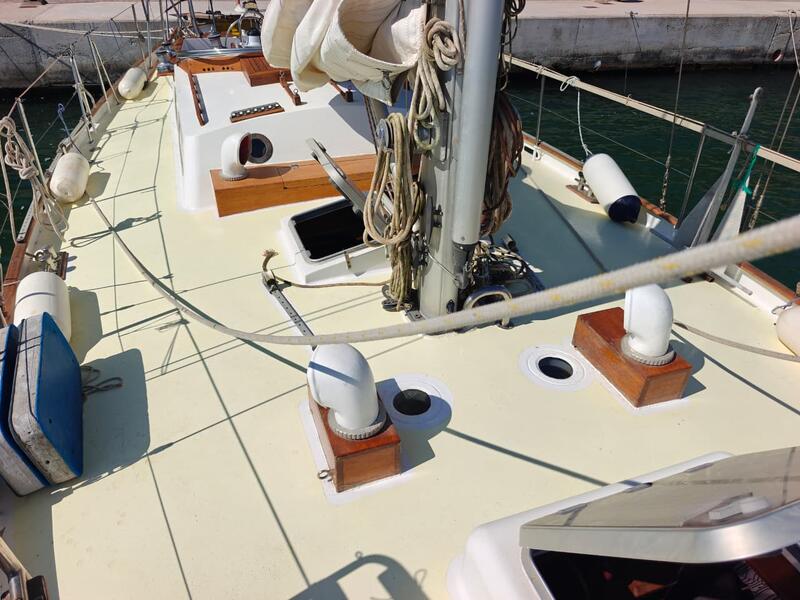

Dorade ventilation system:
5 x 125 mm dorade vents on teak boxes
Stainless steel boarding ladder with teak steps
Sprayhood with stainless steel frame
Bimini with stainless steel frame
Double flap teak cockpit table
12 fenders
Mooring line

Equipment

The yacht is equipped with an impressive range of cruising systems, including solar charging, wind generator, inverter, battery banks, electric anchor windlass, Monitor windvane self-steering, radar, GPS, chartplotter, VHF, and comprehensive safety equipment.

DOMESTIC EQUIPMENT

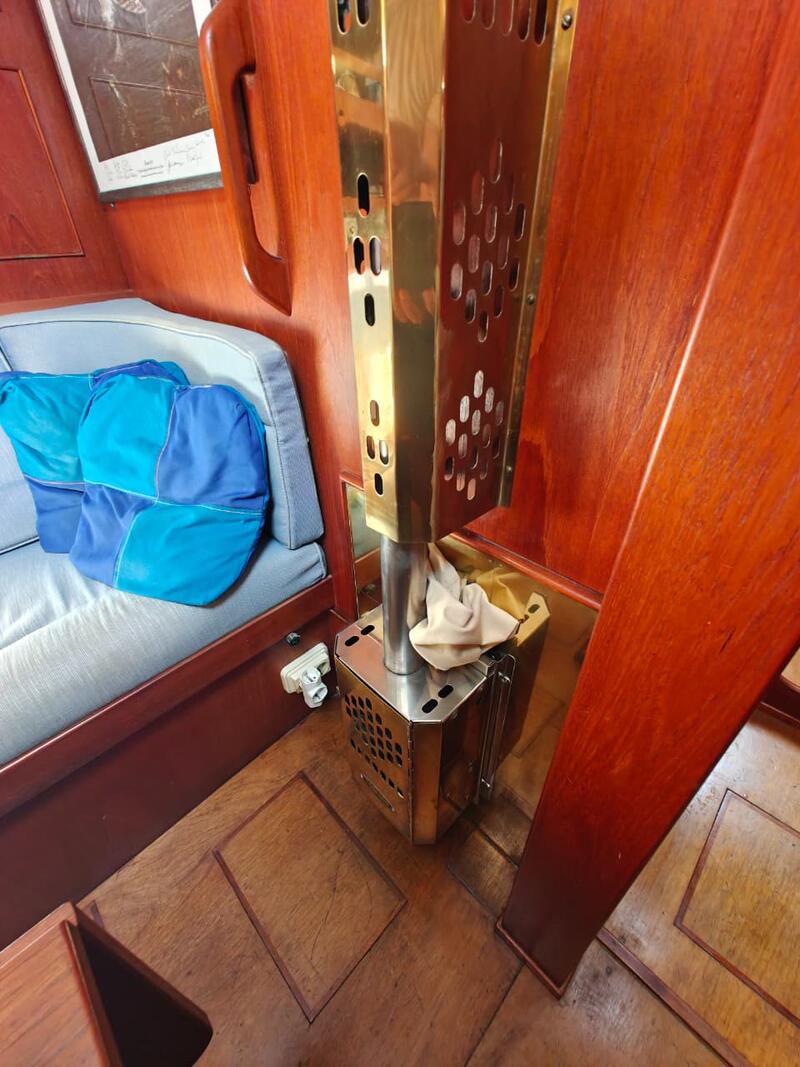

Taylors 2.4 kW diesel cabin heater
Pioneer radio/CD player

ANCHORING & DECK EQUIPMENT

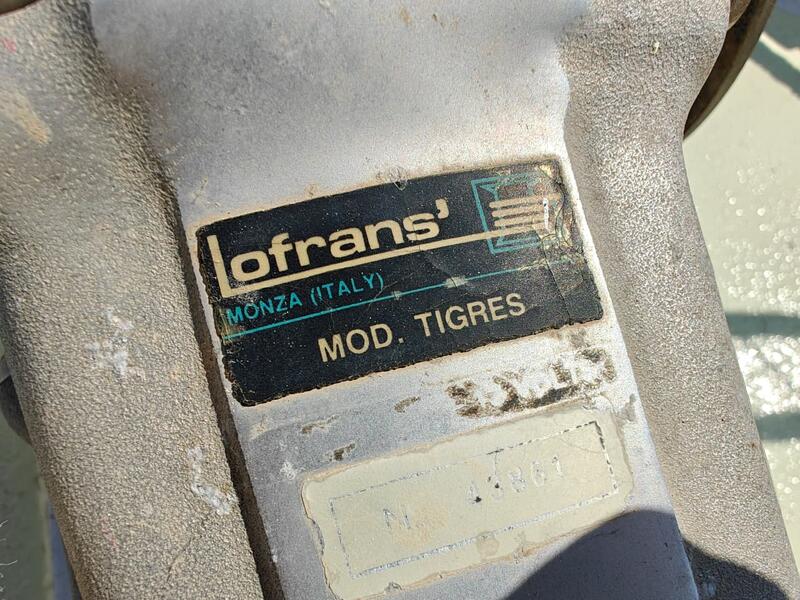

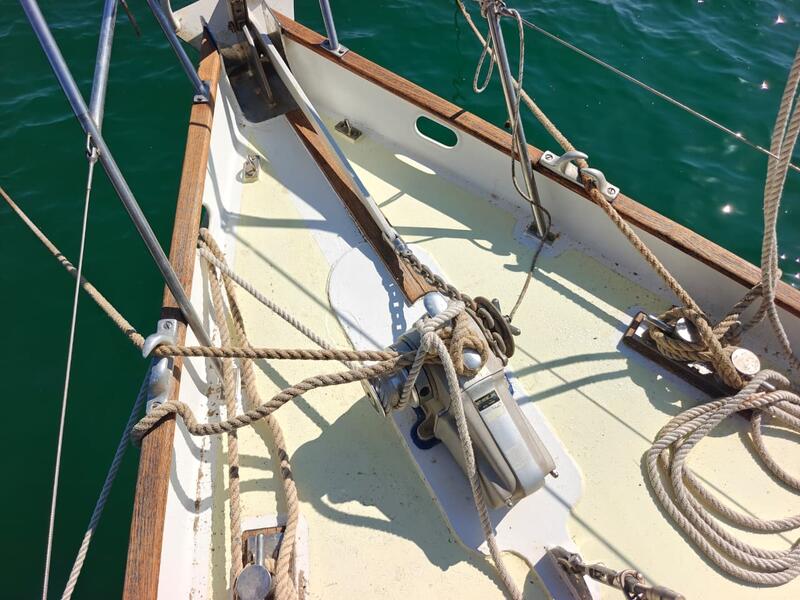

Lofrans 1200W 12V electric anchor windlass with remote control
Anchors:
27 kg Bugel anchor with 100 m x 10 mm galvanised chain
27 kg CQR anchor
16 kg Danforth anchor with chain and anchor warp

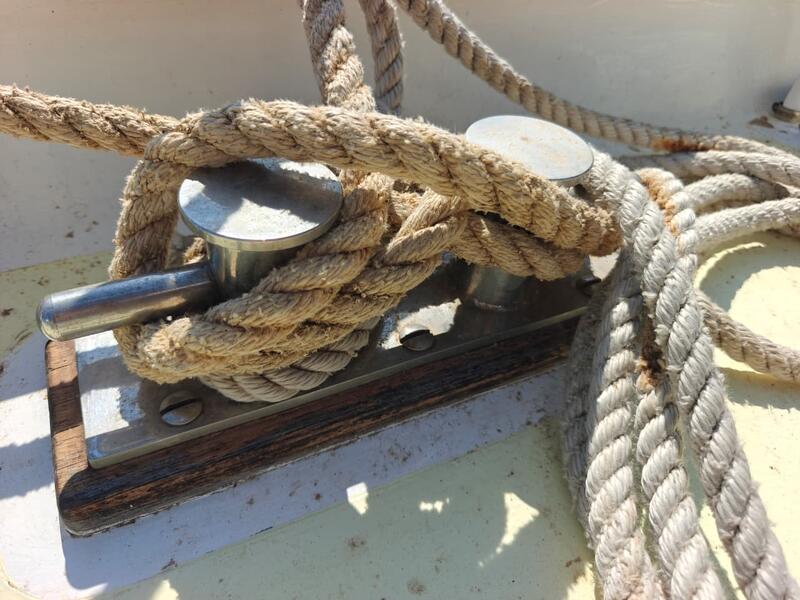

6 large stainless steel bollards

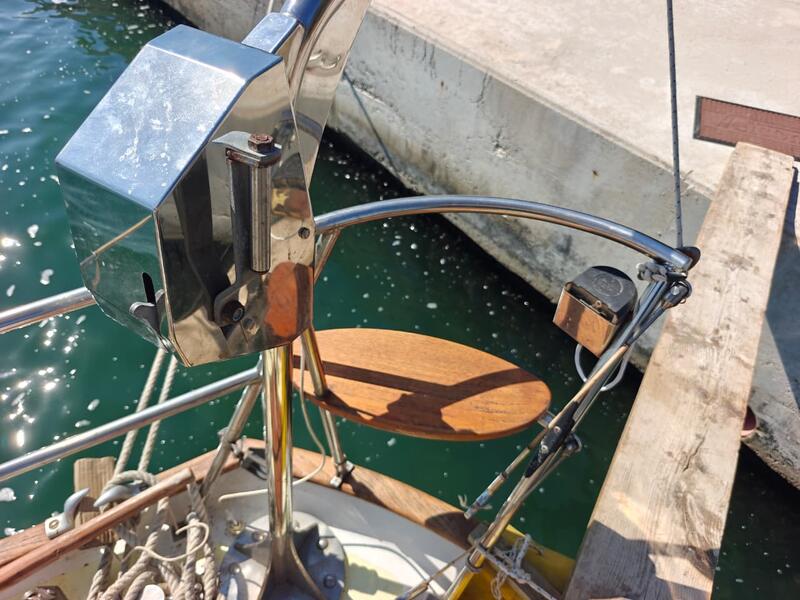

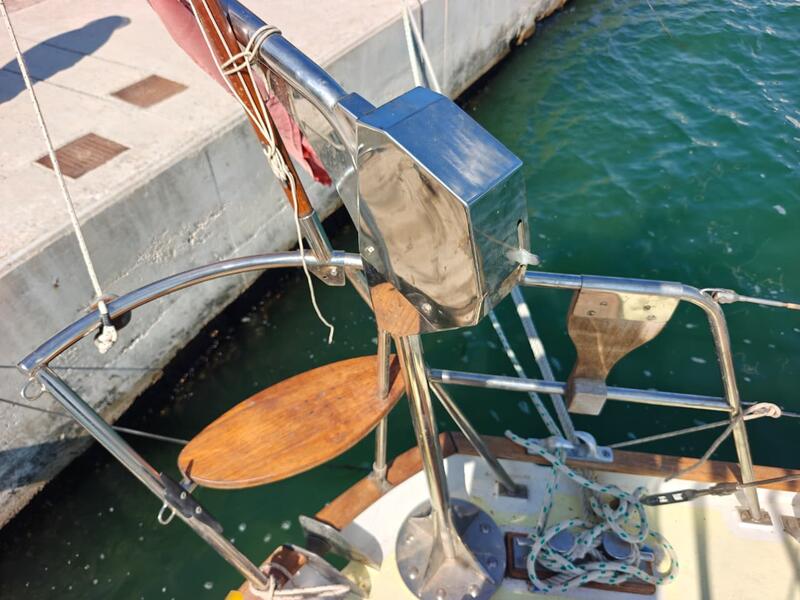

Monitor windvane self-steering system

TENDER
Quicksilver 2.7 m inflatable dinghy
Honda 2 HP 4-stroke outboard engine

Navigation Equipment

Navigation lights:
Pulpit bicolour
Stern light
Masthead tricolour
Masthead anchor light
Steering light
Deck light
Compass light

NAVIGATION & COMMUNICATION
Whitlock Polaris steering compass
Navico Corcus instruments:
Wind
Depth
Log
Fluxgate compass
Multi repeater at chart table
Chartplotter
Furuno GP30/35 GPS
Raytheon SL70 radar
NASA Navtex Pro
ICOM M59 VHF radio
Raytheon ST100 tiller pilot

Engine(s)

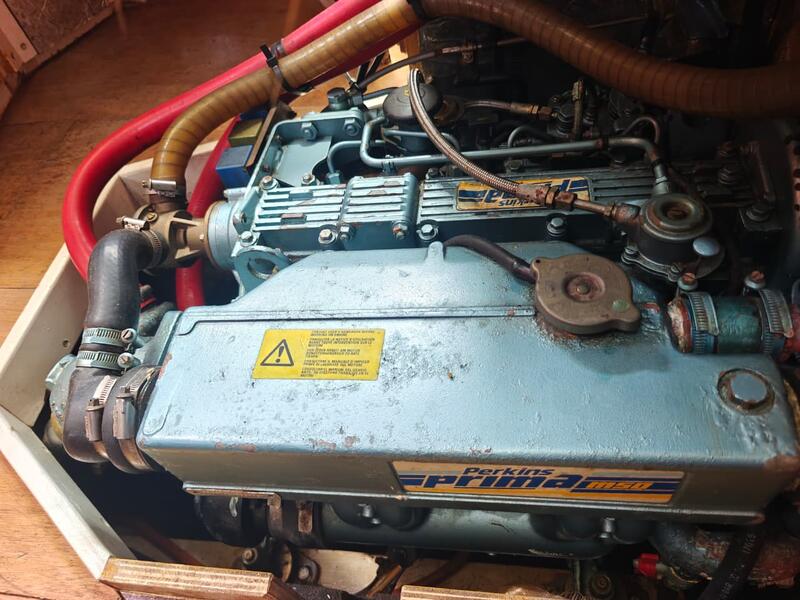

Powered by a Perkins Prima M.50 50 HP diesel engine with a Hurth hydraulic gearbox and a fixed three-bladed propeller, she offers dependable and economical performance under power.

MACHINERY
Engine: Perkins Prima M.50 diesel
Power: 50 HP
Gearbox: Hurth hydraulic gearbox
Propeller: Three-bladed CJR fixed pitch propeller
Propeller shaft: 1½” stainless steel

Sails & Spars

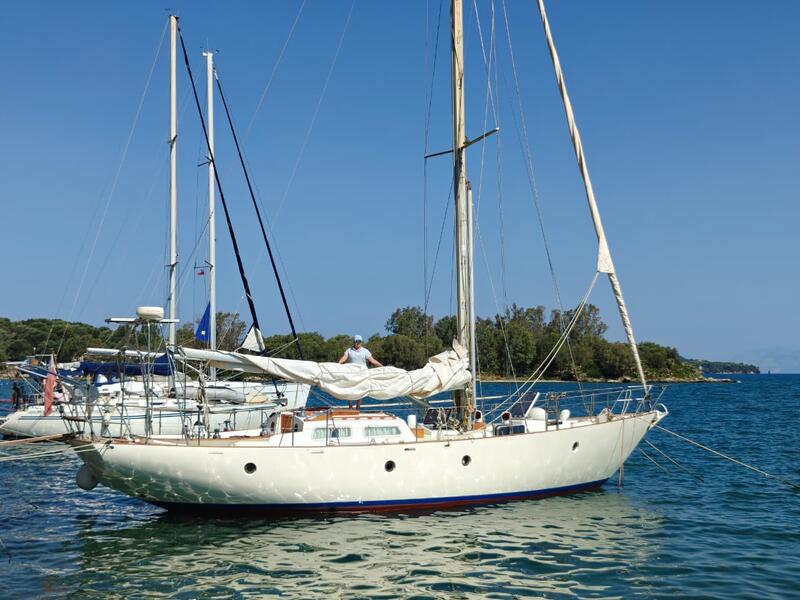

The Bermudan cutter rig, built by Eurospars of Plymouth to Ocean specification, features a deck-stepped alloy mast, Dyform standing rigging, roller-furling Yankee, staysail, mainsail with lazyjacks and lazybag, plus a complete offshore sail wardrobe including trysail and storm jib.

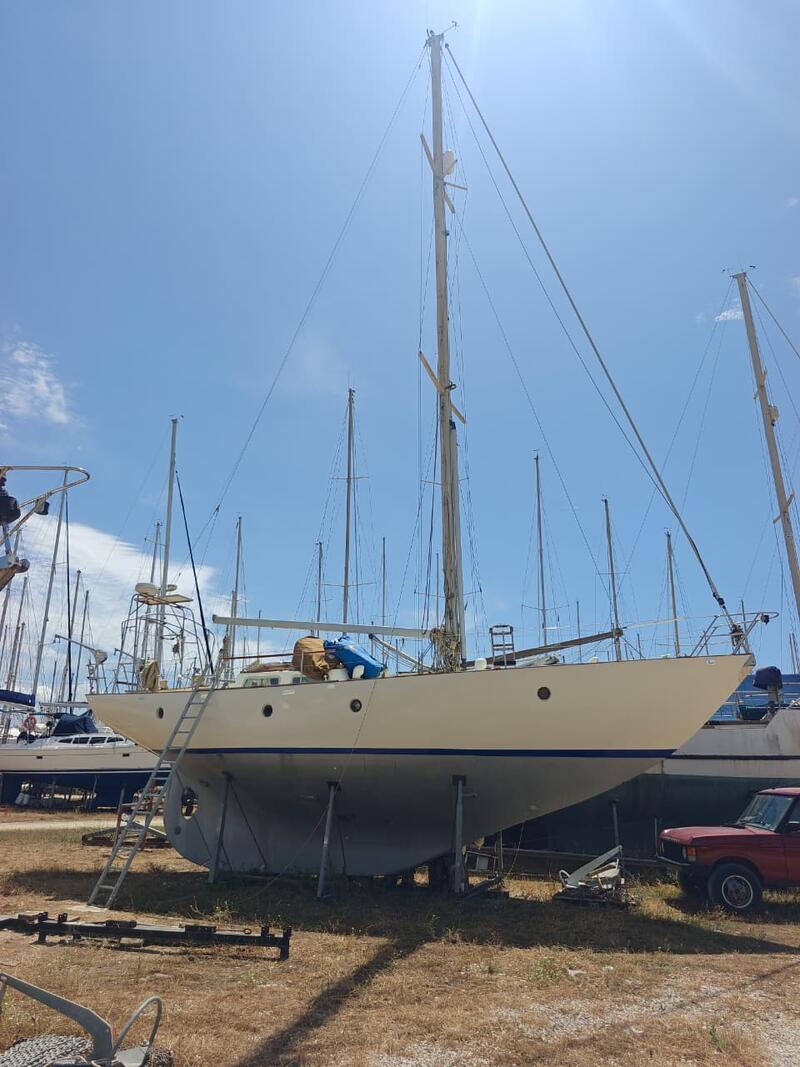

RIGGING & SAILS
Bermudan cutter rig
Eurospars of Plymouth Ocean specification rig
Deck-stepped alloy mast
Jumper struts and two sets of spreaders
Mast steps to masthead
Stainless steel standing rigging
Low-stretch Dyform forestay and backstay
Bronze bottle screws and terminals
Rod kicker
Spinnaker pole

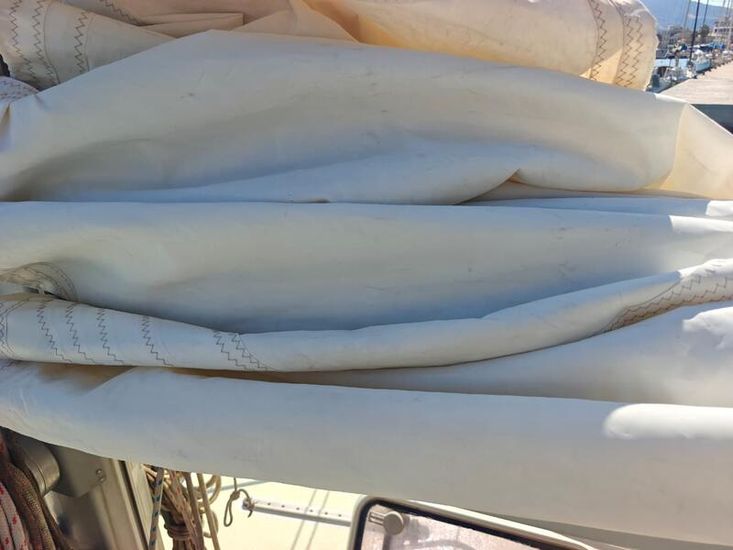

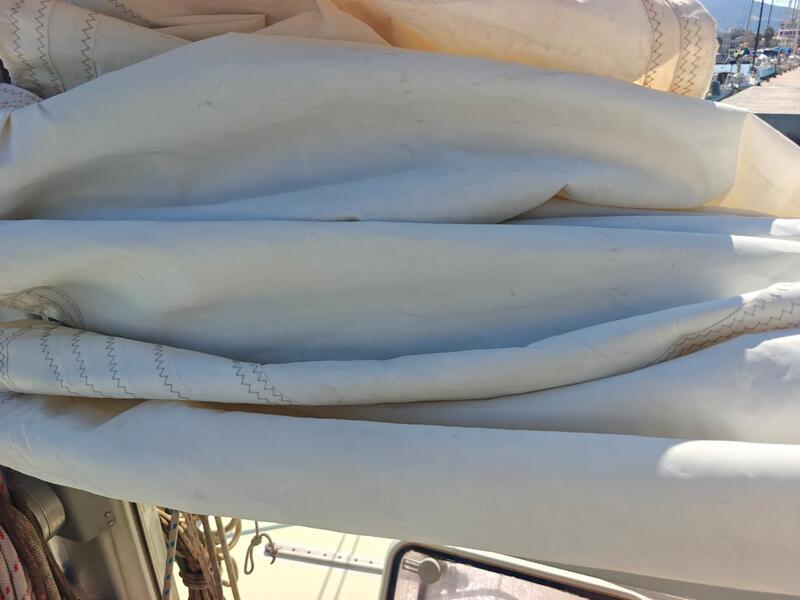

SAILS
Parker & Kay / Quantum sails:

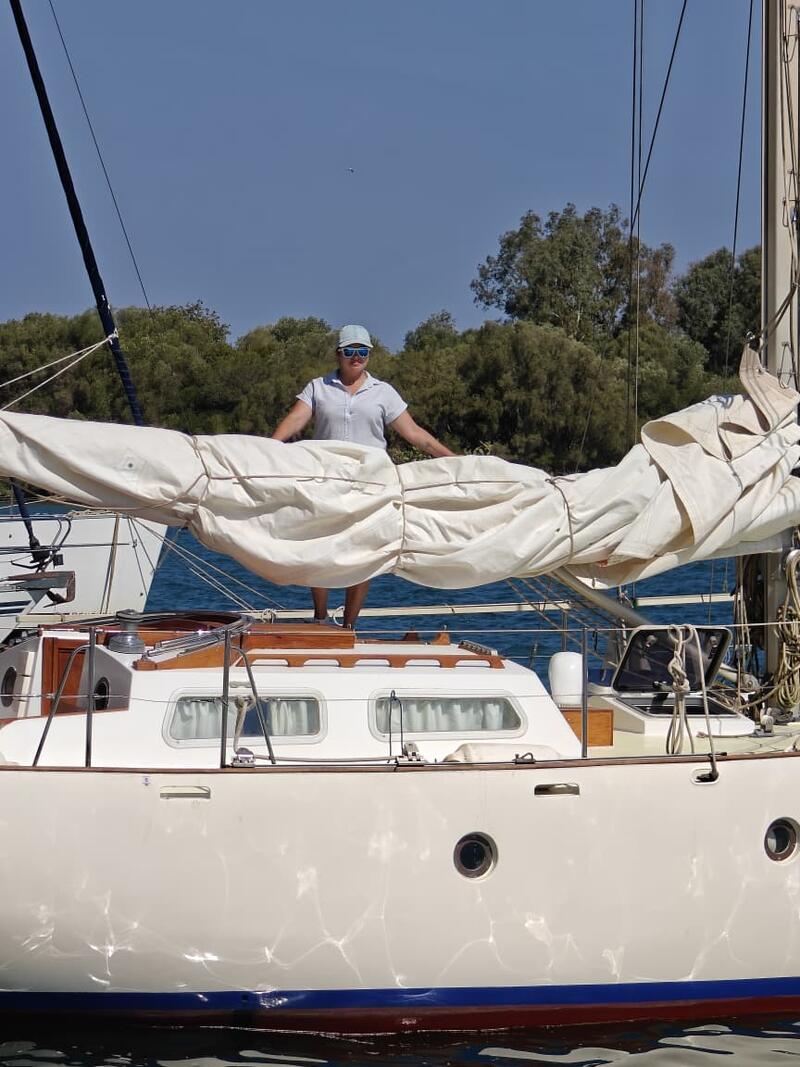

Mainsail with single-line reefing, lazyjacks and lazybag
Yankee sail with Facnor roller furling
Staysail
Trysail
Storm jib

Electrics

ELECTRICAL SYSTEM

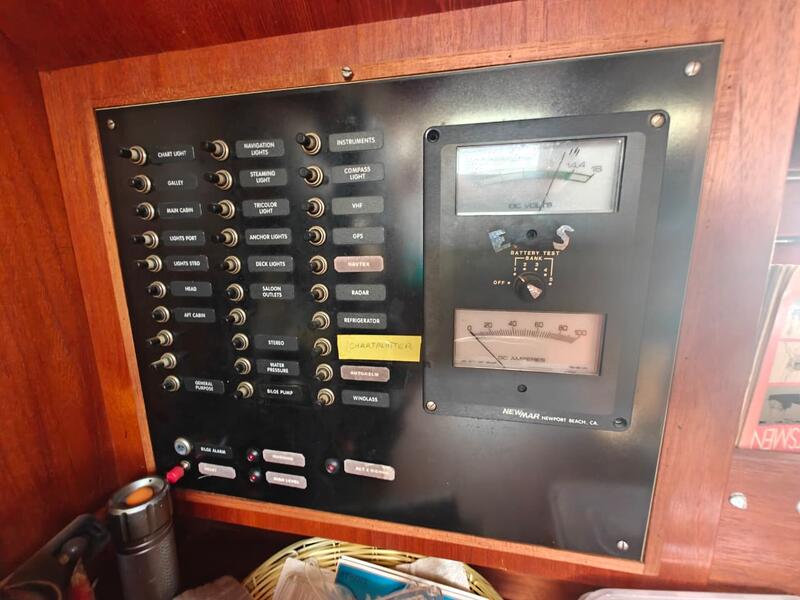

12V electrical system with circuit breakers
Batteries:
1 x 130 Ah engine start battery
3 x 125 Ah service bank (Bank 1)
2 x 165 Ah service bank (Bank 2)

Charging systems:
Adverc charge control via engine alternator
85W BP solar panel with Solex regulator
AirMarine 400W wind generator
Trucharge 20A 3-stage battery charger
1 kW inverter

Safety Equipment

SAFETY EQUIPMENT
4-person liferaft
EPIRB
4 x self-inflating lifejackets
3 x safety clip-on lines
Fire extinguishers
Fire blanket in galley
Gas alarm with automatic cut-off valve
Gas leak detector and pressure switches
Bilge level alarm
Horseshoe lifebuoy with light
Danbuoy
Offshore flare pack
Throwing lines
Sea anchor
Patay double-action manual bilge pump
Electric bilge pump with automatic pressure switch

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
